CRM chat bot

Enterprise AI · CRM operations

A safe CRM action layer

A conversational interface that helps teams search, ask questions, and perform common CRM operations without hiding the permissions, validation, and accountability behind every system change.

01Natural language
02Controlled skill
03Reviewable change

The initial idea was simple: place an AI chatbot inside the CRM and let it handle lead creation, tagging, password resets, and batch operations through natural language.

The real design problem was more demanding. The assistant had to locate the correct records, respect user permissions, recover from errors, and make every change understandable before it was applied.

Context

Teamforce CRM

Focus

AI action systems

Reframing the problem

Not a chatbot. A command layer.

Early flows generated simulated responses for ambiguous requests, displayed disconnected confirmation cards, and used a generic “Thinking” state that gave users no insight into which records or values were being accessed.

A normal chatbot primarily generates responses. This assistant needed to coordinate structured operations that could update records, notify users, or change account states. The project was therefore reframed around controlled CRM access rather than unrestricted conversation.

From

How might we add an AI chatbot to the CRM?

To

How might we let users safely query and modify CRM data through conversation?

MVP constraints

Designing without page context

The early concept assumed the assistant could detect the current module, active filters, selected rows, and business unit. During technical alignment, the AI team confirmed that page-level context would not be available in the first release.

That limitation changed the interaction model. Automatic context chips were removed, universal skill-based actions replaced page-specific shortcuts, and every record became something the user or assistant had to resolve explicitly.

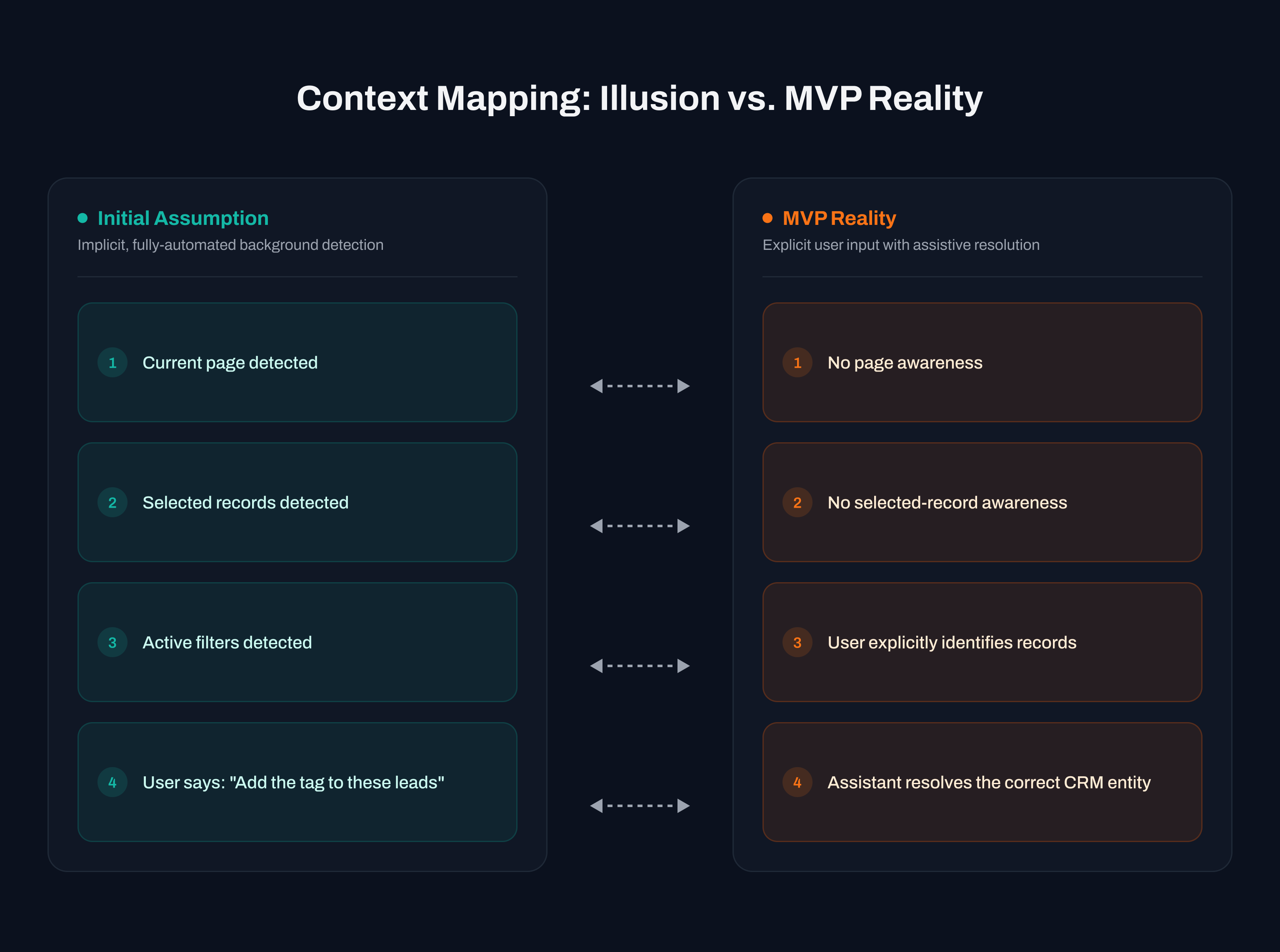

Comparison between an assumed context-aware assistant and the explicit MVP interaction model
Removing unsupported context awareness changed the assistant from an implicit page companion into an explicit, skill-based command interface.

Revised design principle

The assistant must not invent information that is not present in context. Every record, account, user, or data set must be identified in the conversation.

Product principles

Rules before interface

Five principles created a shared product boundary for design, orchestration, and engineering before the individual workflows were specified.

01

Explicit scope over assumed context

Every action identifies the records being read or changed instead of relying on phrases such as “this record.”

02

Structured execution over free-form automation

The model interprets and plans the task while registered skills control what the product can execute.

03

Review before change

Read-only questions can resolve immediately; every CRM mutation requires a review and explicit approval.

04

Honest system feedback

Success, failure, missing information, permission issues, and unresolved results are communicated as distinct states.

05

Recovery is part of the experience

Correction, retry, partial failure handling, and undo are designed into the primary flow where the operation allows them.

Capability model

Five executable skills

The MVP was deliberately constrained to querying CRM data, finding and summarising records, creating records, managing tags and supported fields, and restricted account operations. This converted an open-ended promise into a system the team could validate and ship.

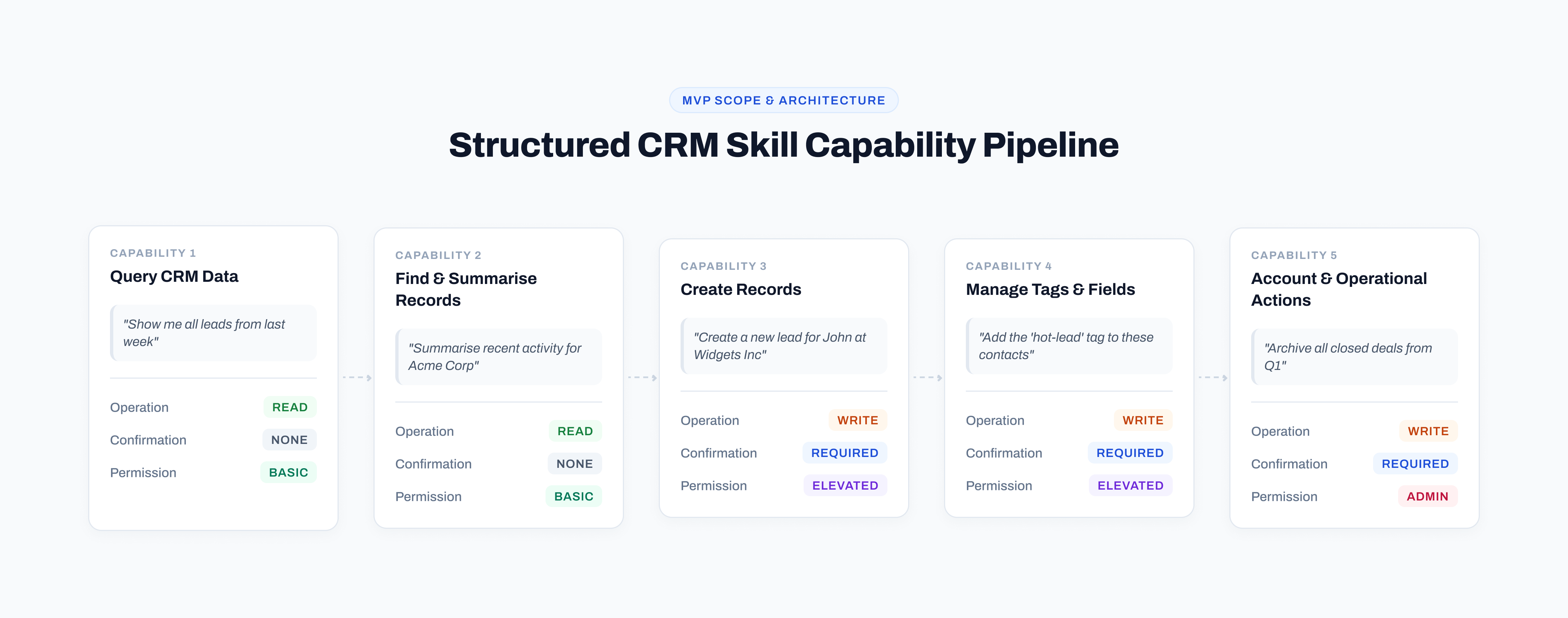

Five CRM Assistant skill groups with request, operation, confirmation, and permission details
The MVP was constrained to five implementable skill groups rather than attempting to support unrestricted CRM requests.

Skill contracts

A shared skill contract

Each capability became a registered skill describing its entity types, required inputs, permission, confirmation, bulk-action, undo, and risk rules. The model could identify a request, but the contract determined what the application was allowed to do.

Skill definition · JSON contract

{
  "id": "add_lead_tag",
  "name": "Add lead tag",
  "supportedEntityTypes": ["lead"],
  "requiredInputs": ["recordIds", "tagId"],
  "requiredPermission": "leads.update",
  "supportsBulkAction": true,
  "requiresConfirmation": true,
  "supportsUndo": true,
  "riskLevel": "standard_change"
}

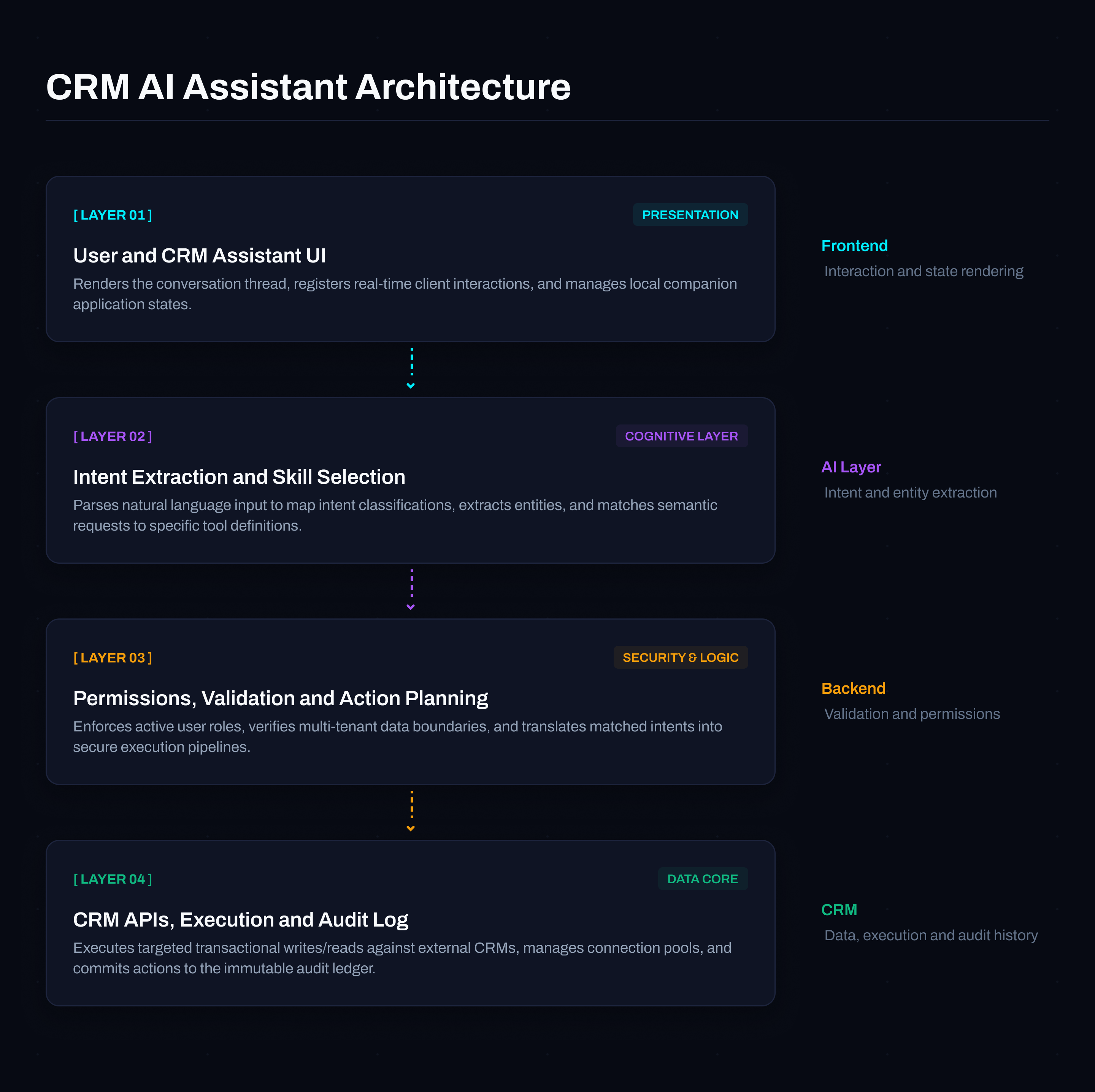

CRM Assistant architecture separating the conversational interface, orchestration, permissions, and CRM execution
The assistant separates conversational understanding from validation and execution, keeping the CRM—not the language model—as the system of record.

Entry experience

Show supported actions

“How can I help?” was familiar but too vague. The revised entry state exposes supported skills, gives users useful starting points, and states that records may need to be identified and changes are only applied after approval.

Capability-led prompts remain consistent across the CRM because they are tied to supported skills, not whichever page happens to be open.

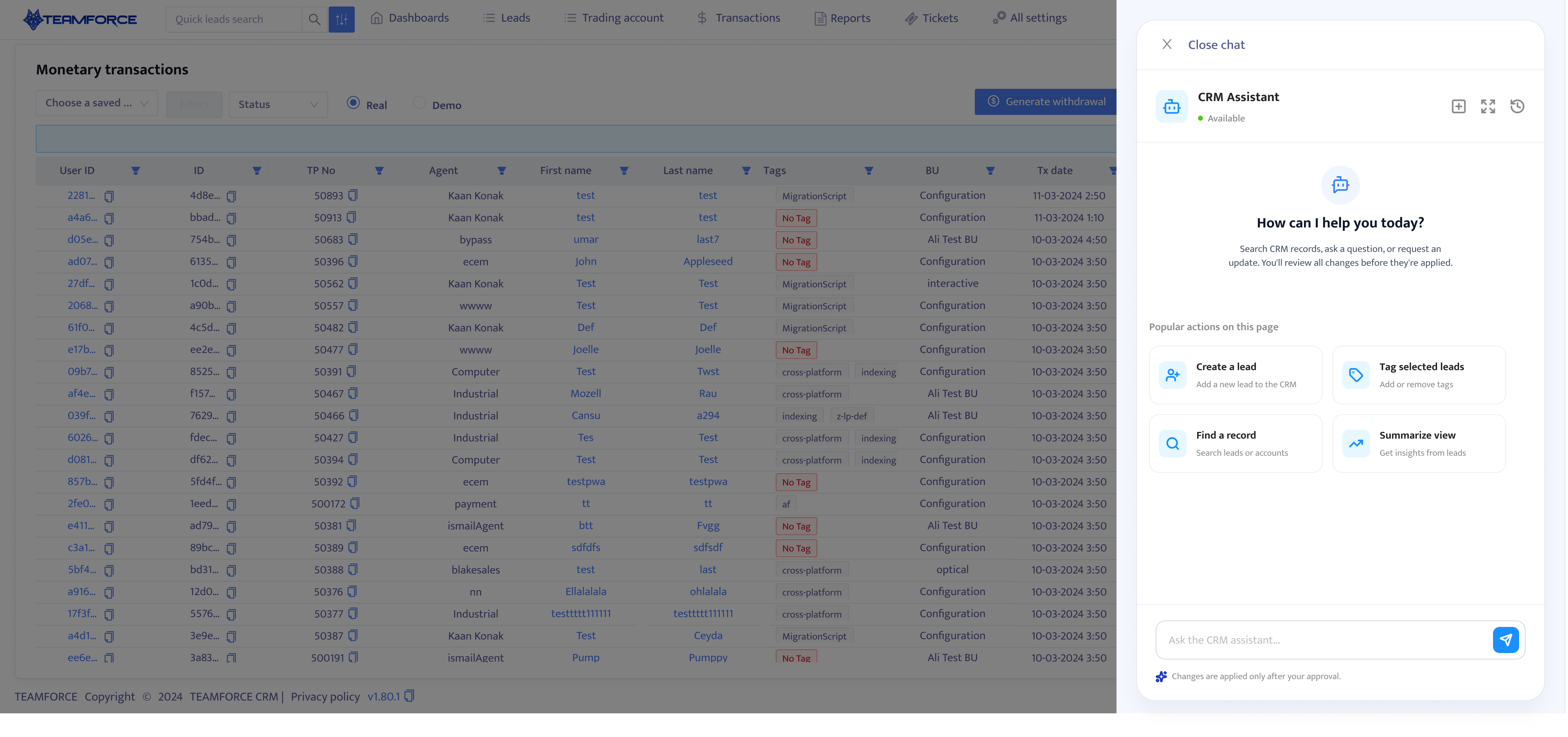

CRM Assistant entry state showing supported actions and approval guidance
The redesigned entry state exposes supported skills, clarifies the assistant’s boundaries, and reassures users that changes require approval.

Explicit entity resolution

Resolve records with @ mentions

Typing @ opens permission-aware search across leads, clients, affiliates, users, and business units. A selected result becomes a readable inline chip carrying structured CRM type and ID data, so the backend receives a validated identity instead of a name the model has to interpret.

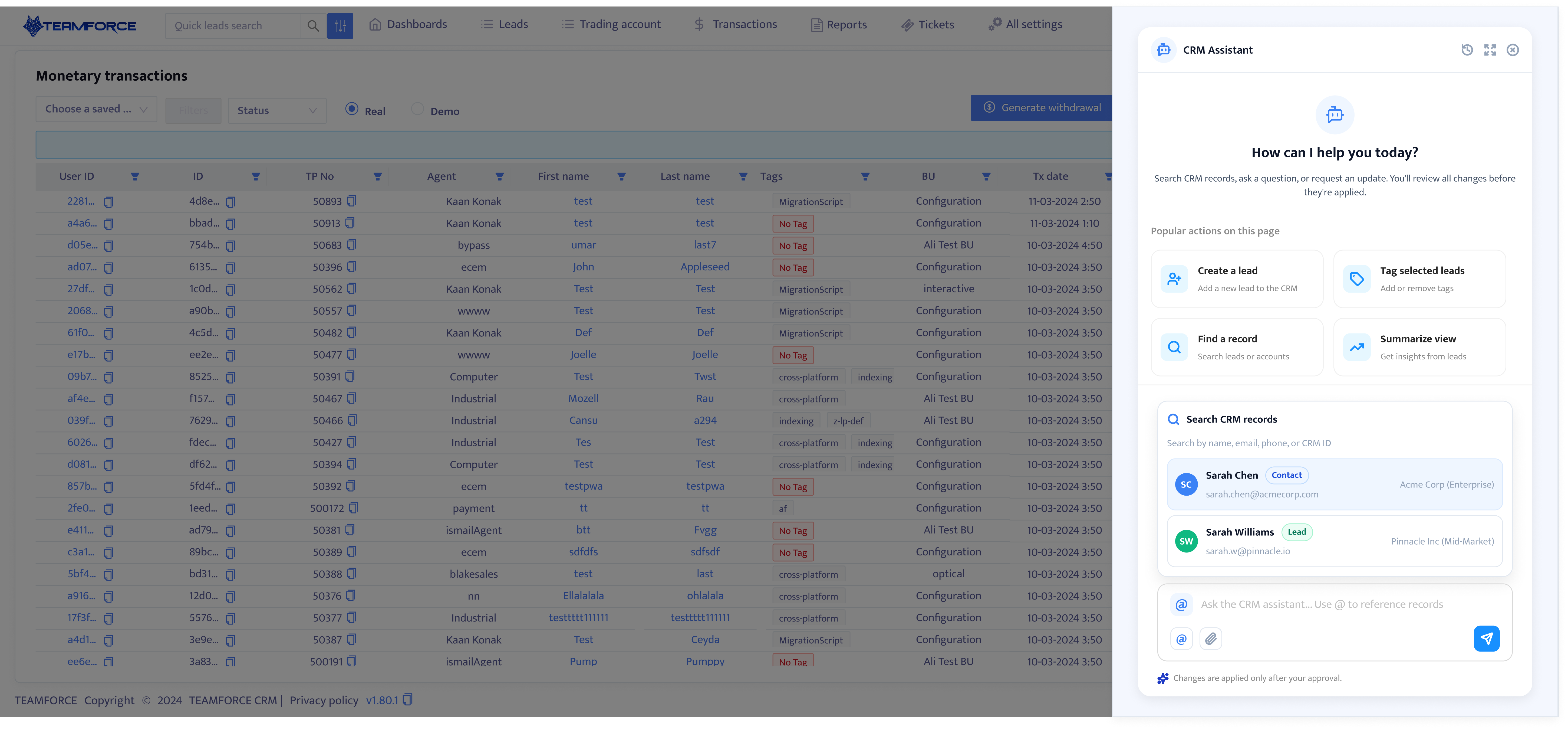

CRM Assistant mention search returning structured CRM records
Typing @ opens CRM search and returns structured, permission-aware entity results.

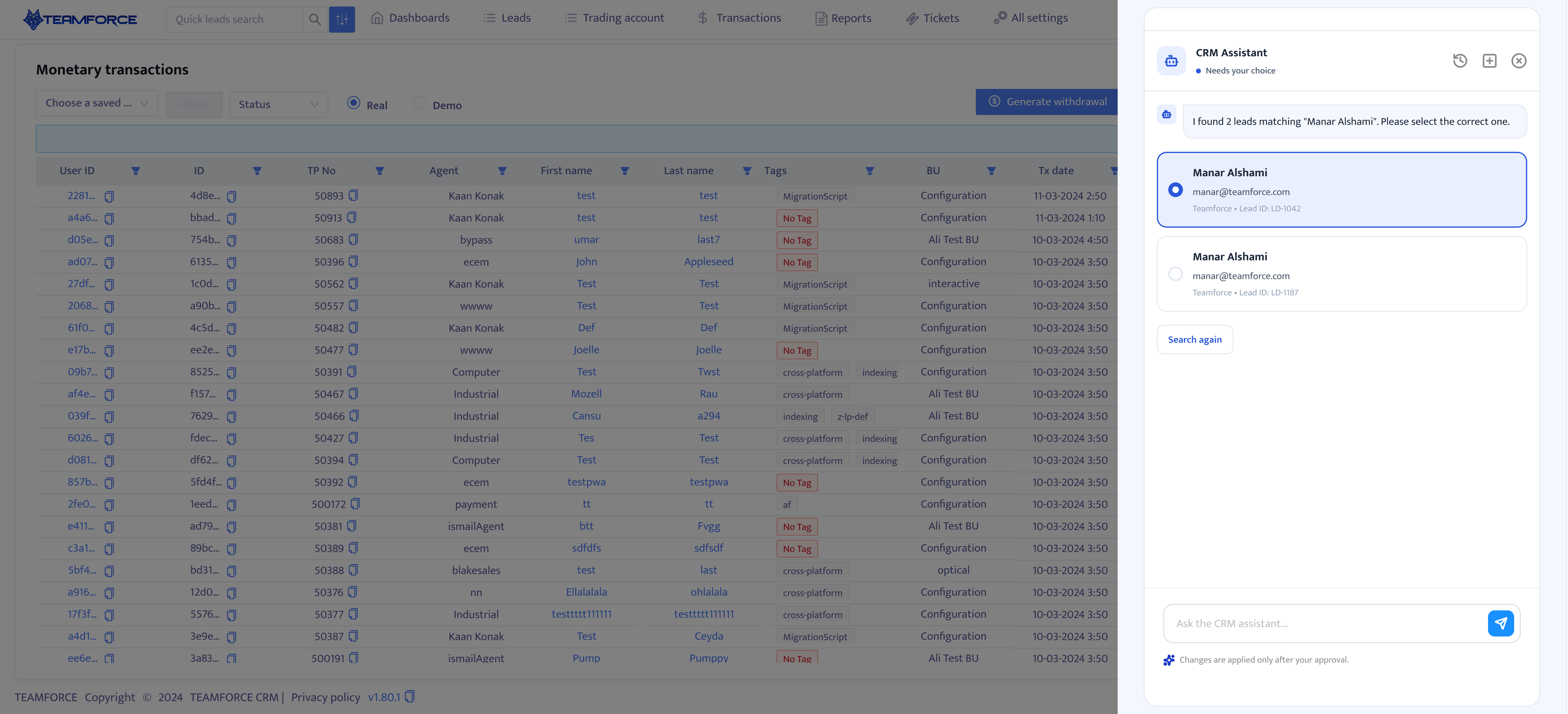

CRM Assistant asking the user to choose between duplicate record matches
When records share a name, the assistant pauses for the correct CRM identity instead of guessing.

Natural-language extraction

Extract fields from natural language

The assistant classifies intent, extracts the fields already present, resolves human-readable values to CRM entities, validates them against CRM rules, and asks only for details that are missing or ambiguous.

This produces a hybrid interface: natural language provides speed, field-specific clarification provides precision, and review cards provide control before any mutation.

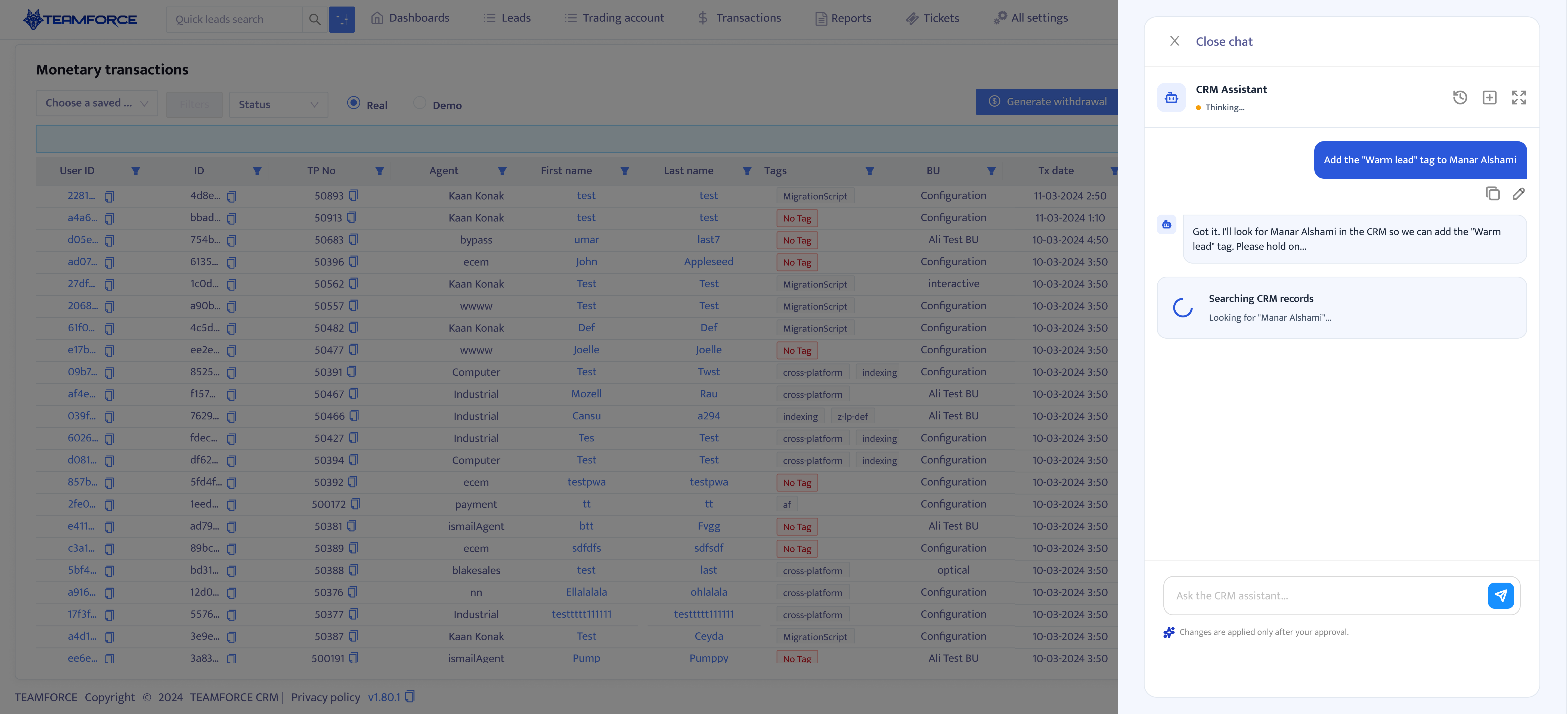

CRM Assistant interpreting a tagging request and resolving the target record
The assistant separates the requested action, target entity, and field value before preparing any CRM change.

From resolution to execution

Make execution visible

Validation and execution are presented as a readable operational sequence instead of a generic thinking state. Users can see when the assistant is searching, validating, checking access, preparing a review, waiting for approval, or applying a change.

  1. 01

    Understand

  2. 02

    Resolve

  3. 03

    Validate

  4. 04

    Check access

  5. 05

    Review

  6. 06

    Approve

  7. 07

    Execute

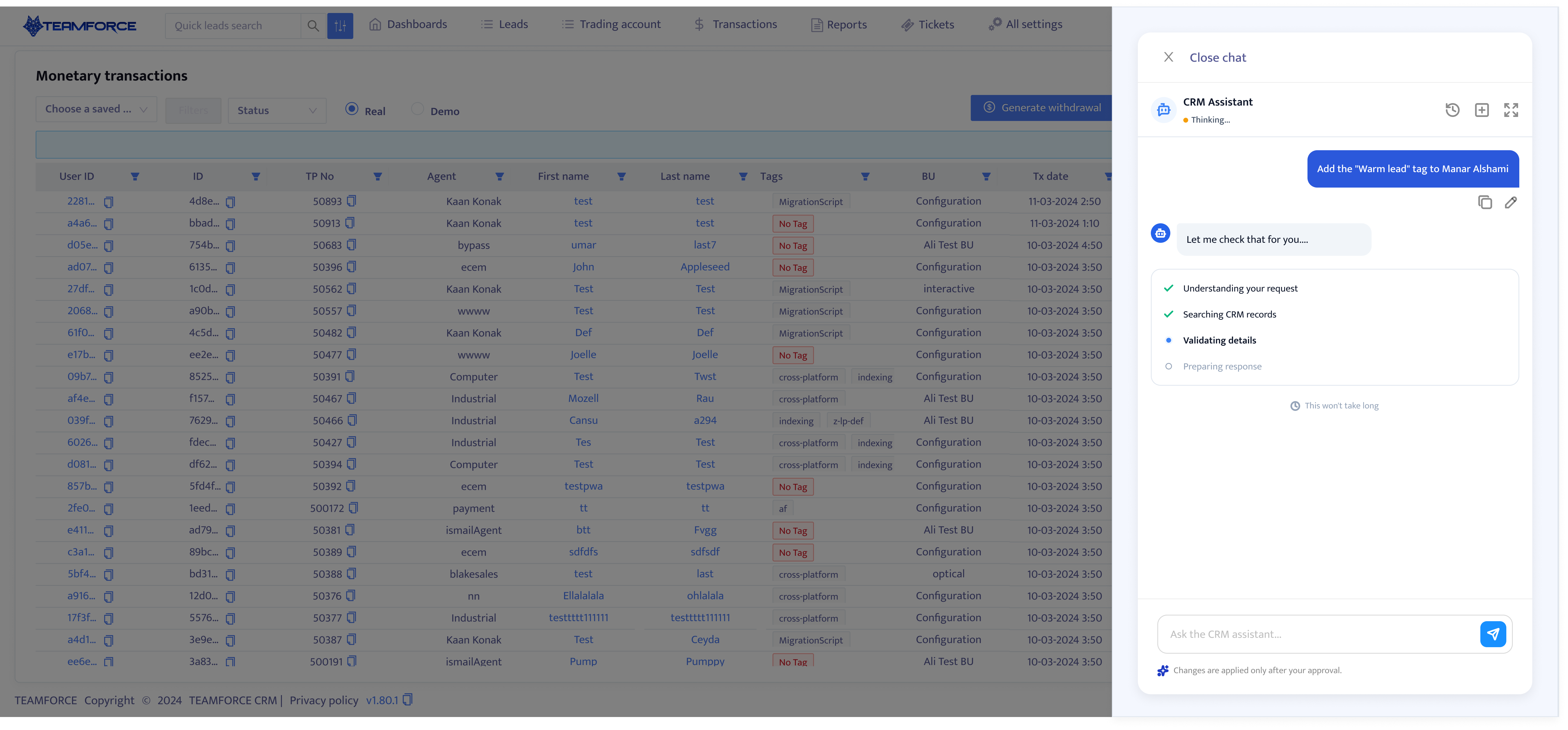

CRM Assistant showing transparent progress while preparing a controlled CRM operation
Clear progress language exposes what the system is doing instead of hiding validation and execution behind a generic thinking state.

Measuring the release

A measurement framework

Because the assistant was still at MVP stage, the case study does not present unverified performance claims. The measurement plan focuses on whether the product actually reduces work while preserving reliability and user control.

Adoption

  • Eligible users opening the assistant
  • Weekly and repeat usage
  • Quick-action versus free-text usage

Efficiency

  • Median completion time by skill
  • Assistant turns per completed task
  • Extracted fields accepted without editing

Reliability

  • Intent and entity-resolution accuracy
  • Full versus partial success
  • Execution failures and duplicate prevention

Trust and control

  • Review-card edits and cancellations
  • Undo and permission-denied rates
  • Users opening audit details

Outcome

An implementation-ready model

The final design moved the assistant from a generic chatbot concept to an operational system that communicates what it knows, what it still needs, and exactly what it is about to change.

  1. 01

    User intent

  2. 02

    Explicit entities

  3. 03

    Skill contract

  4. 04

    Permission validation

  5. 05

    Review

  6. 06

    Execution

  7. 07

    Audit

  8. 08

    Recovery

Reflection

Shared responsibility in AI

This project reinforced that designing AI products requires more than shaping a conversation. The essential work is deciding how responsibility is divided between the model, the application, and the person authorising the result.

When page awareness proved technically unrealistic, the answer was not to disguise the limitation. The interaction changed so users could provide explicit context and the application could validate it. That made the MVP more honest, safer, and easier to extend skill by skill.

The strongest AI experiences do not hide uncertainty. They turn it into a clear moment for context, validation, and control.
